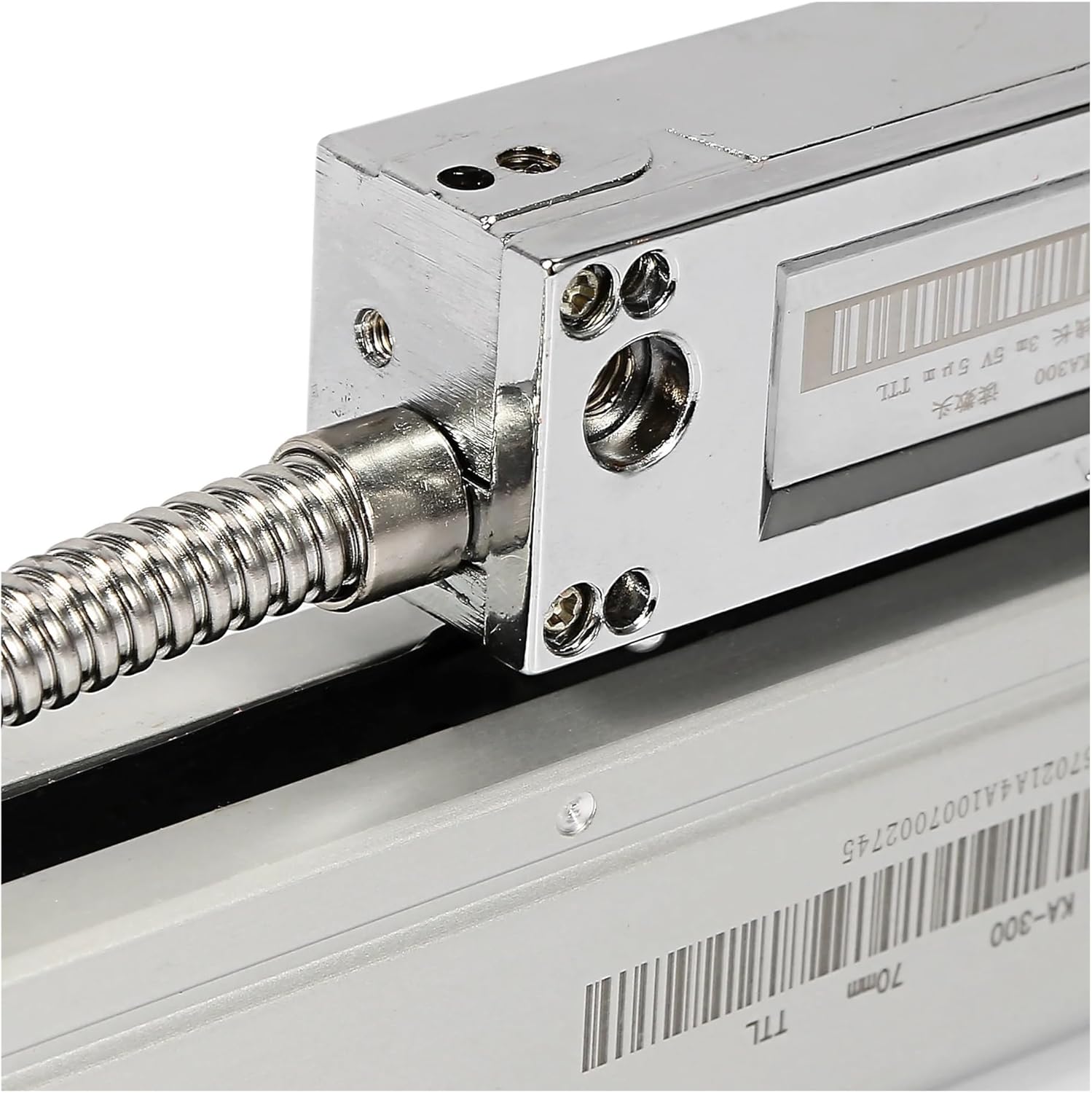

320mm 370mm 420mm 470mm 520mm Optical Grating Ruler KA300 5um 5V TTL DRO Linear Scale for Turning Lathe Milling - Precise Measurement(Ka300 5um 320mm 1)

Parameter Product name: Linear scale Available Measrus Length: 320 170 420 470 520mm Cross Section: 25mm X 34mm Accuracy: +/- 3, 5, 10 (20 degree, 680 F 1000mm) Max of Measuring speed: 60m/min Protection level: IP55 Resolution: 1um/ 5um(0.001mm/0.005mm) Output signal: TTL / EIA-422-A Cable standard: 3 meters Bar Pitch: 0.02mm Power: +5V±5%, 80mA Operating temperature:0-45 degree centigrade Connetor: 9 Pins Scale wiring diagram Scale drawing & Size

• Multiple measurement length options: The available measurement length of covers 320mm to 520mm, which can flexibly adapt to different equipment and application requirements
• High accuracy and resolution: The accuracy can reach ±3μm, and the resolution is 1μm or 5μm (0.001mm/0.005mm), ensuring accurate measurement results
• Fast measurement capability: The maximum measurement speed can reach 60m/min, which is suitable for efficient production lines and improves work efficiency
• Good protection performance: With IP55 protection level, it is effectively dustproof and waterproof, suitable for use in a variety of industrial environments
• Compatible with multiple output signals: Supports TTL and EIA-422-A output, which is convenient for integration with different systems and enhances device compatibility
